质粒类型: | 大肠杆菌表达载体 |
---|---|
表达水平: | 高 |
克隆方法: | 多克隆位点,限制性内切酶 |
载体大小: | 7274 bp |
5' 测序引物及序列: | T7: 5'-TAATACGACTCACTATAGGG-3' |
3' 测序引物及序列: | ColiDOWN: 5'-TTCACTTCTGAGTTCGGCATG-3' |
载体标签: | C-HSV, N-His, C-His, N-Thrombin, N-Nus, N-EK |
载体抗性: | Ampicillin (氨苄青霉素) |
备注: |
C term His tag only; N term thrombin cleavage site; N term enterokinase cleavage site; a,b,c vary by MCS
|
产品编号 | 产品名称 | 规格 | 价格 |
---|---|---|---|
QC1943 | pET-43.1b(+) |
5ug质粒 |
¥1000.00 |

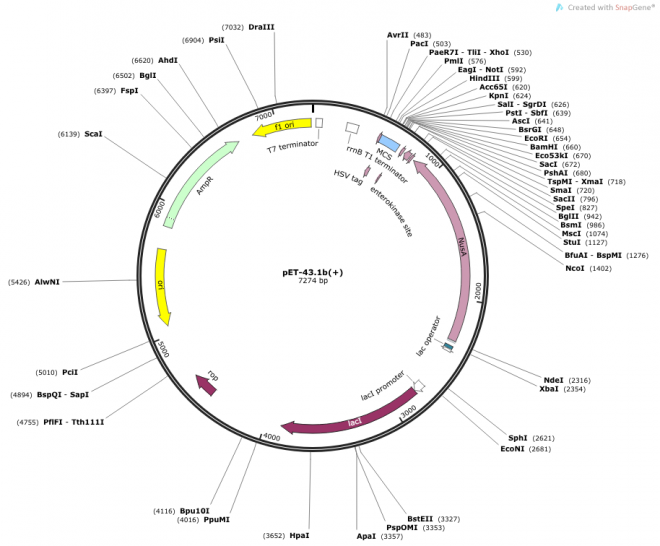

The pET-43.1 series of vectors are designed for cloning and high-level expression of peptide sequences fused with the 491 aa Nus•Tag™ protein. Unique sites are shown on the circle map. Note that the sequence is numbered by the pBR322 convention, so the T7 expression region is reversed on the circle map. The cloning/ expression region of the coding strand transcribed by T7 RNA polymerase is shown below. The f1 origin is oriented so that infection with helper phage will produce virions containing single stranded DNA that corresponds to the coding strand. Therefore, single stranded sequencing should be performed using the ColiDOWN primer (cat. no. 70845-3). Vector encoded sequence can be completely removed when cloning into the PshA I or Sma I sites (as shown below) by cleaving the Nus•Tag fusion protein with enterokinase or thrombin, respectively.
